| Feature |
Ductile Iron Fittings |
Forged Fittings |
Remarks |
| Internationally Used in Fire Fighting |
Yes |
No |
Internationally Chosen Europe as well as USA |
| International Approval |
Yes, UL & FM |
No Approval |
FM Approval is basic criterion for Fire Fighting Fittings |
| Ease of Use & Handling |
High, Light Weight |
Low, Extra Heavy |
Installation Friendly |
| Threaded |
Yes |
Yes |
Equable |
| Test Pressure |
2000 psi (500 psi working pressure) |
1000 psi |
Higher pressure rating |
| Cost / Price |
Low, 10-15% cheaper than Forged Fittings |
Very High |
|
Products Supplied by FU-TEC for Pipe Support Systems, Anti Vibration Systems , and HVAC ,PLUMBING , FIRE & SAFETY are of highest international standards which are tested and bear the label of Approval of Internationally accreditation from laboratories such as UNDER WRITERS LABORATRIES INC – [U.S.A] & F M APPROVALS [U.S.A] .Further, our supplier products are certified by Dun & Bradstreet which helps us in growing relationships through their global database and helps us in exploring the new potential customers.
Unitech is First and Only Company from India to have accreditation for PIPE HANGERS UL AND FM for pipe support system in India.

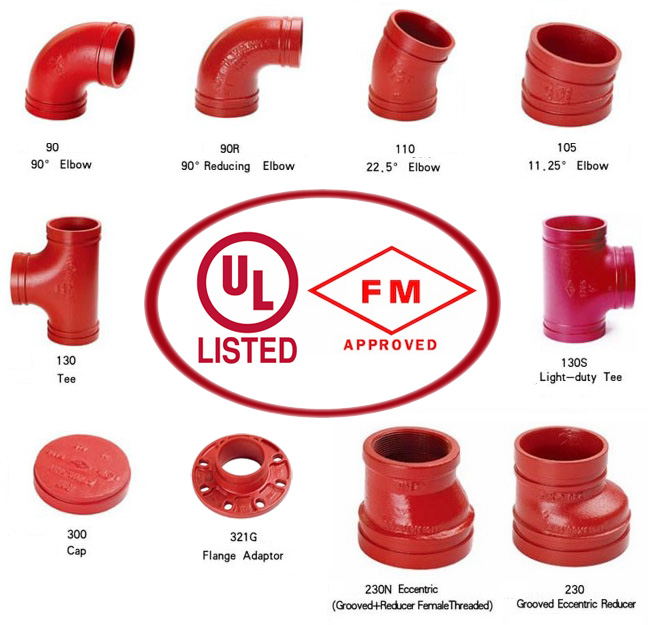

We as Unitech can supply all DI Threaded Fittings: DUCTILE IRON BANDED PIPE FITTINGS (AS PER ASTM A536 WITH BRITISH TAPER THREAD) Our range of products conform to the International & Standard for various applications. Our Black Ductile Iron fitting with UL/FM are with better quality & better prices as compared to forged fittings.
Table: 90 Elbow, 90º
| Size |
Inch |
1/2” |
3/4” |
1” |
1-1/4” |
1-1/2” |
2” |
2-1/2” |
3” |
| mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
| Dimensions |
A |
28.5 |
33.3 |
38.1 |
44.5 |
49.3 |
57.2 |
68.6 |
78.2 |
Table: 90R
| Size |
Inch |
3/4"x1/2” |
1”x1/2” |
1”x3/4” |
1-1/4”x1/2” |
1-1/4”x3/4” |
1-1/4”x1” |
1-1/2”x1/2” |
1-1/2”x3/4” |
1-1/2”x1” |
1-1/2”x1-1/4” |
2”x1/2” |
2”x3/4” |
2”x1” |
| mm |
20x15 |
25x15 |
25x20 |
32x15 |
32x20 |
32x25 |
40x15 |
40x20 |
40x25 |
40x32 |
50x15 |
50x20 |
50x25 |
| Dimensions |
A |
30.5 |
32 |
34.8 |
34 |
36.8 |
40.1 |
35.8 |
38.6 |
41.9 |
46.2 |
37.9 |
40.6 |
43.9 |
| B |
31 |
35.5 |
36.8 |
38.9 |
41.2 |
42.4 |
42.2 |
44.5 |
45.7 |
47.8 |
47.8 |
50 |
51.3 |
130
| Size |
Inch |
1/2” |
3/4” |
1” |
1-1/4” |
1-1/2” |
2” |
2-1/2” |
| mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
| Dimensions |
A |
28.5 |
33.3 |
38.1 |
44.5 |
49.3 |
57.2 |
68.6 |
130R
| Size |
Inch |
3/4"x1/2” |
1”x1/2” |
1”x3/4” |
1-1/4”x1/2” |
1-1/4”x3/4” |
1-1/4”x1” |
1-1/2”x1/2” |
1-1/2”x3/4” |
1-1/2”x1” |
1-1/2”x1-1/4” |
2”x1/2” |
2”x3/4” |
2”x1” |
2”x1-1/4” |
2”x1-1/2” |
| mm |
20x15 |
25x15 |
25x20 |
32x15 |
32x20 |
32x25 |
40x15 |
40x20 |
40x25 |
40x32 |
50x15 |
50x20 |
50x25 |
50x32 |
50x40 |
| Dimensions |
A |
30.5 |
32 |
34.8 |
34 |
36.8 |
40.1 |
35.8 |
38.6 |
41.9 |
46.2 |
37.9 |
40.6 |
43.9 |
48.3 |
51.3 |
| B |
31 |
35.5 |
36.8 |
38.9 |
41.2 |
42.4 |
42.2 |
44.5 |
45.7 |
47.8 |
47.8 |
50 |
51.3 |
53.3 |
54.9 |
180
| Size |
Inch |
1” |
1-1/4” |
1-1/2” |
2” |
| mm |
25 |
32 |
40 |
50 |
| Dimensions |
A |
38.1 |
44.5 |
49.3 |
57.2 |
180R
| Size |
Inch |
1-1/4”x1” |
1-1/2”x1” |
| mm |
32x25 |
40x25 |
| Dimensions |
A |
40.1 |
41.9 |
| |
42.4 |
45.7 |
220
| Size |
Inch |
1/2” |
3/4” |
1” |
1-1/4” |
1-1/2” |
2” |
| mm |
15 |
20 |
25 |
32 |
40 |
50 |
| Dimensions |
A |
34 |
38.6 |
42.4 |
48.4 |
54.6 |
64.3 |
240
| Size |
Inch |
1”x1/2” |
1”x3/4” |
1-1/4”x3/4” |
1-1/4”x1” |
1-1/2”x1” |
1-1/2”x1-1/4” |
2”x1” |
2”x1-1/4” |
2”x1-1/2” |
| mm |
25x15 |
25x20 |
32x20 |
32x25 |
40x25 |
40x32 |
50x25 |
50x32 |
50x40 |
| Dimensions |
A |
42.9 |
42.9 |
53 |
52.3 |
58.7 |
58.7 |
71.4 |
71.4 |
71.4 |
241
| Size |
Inch |
1”x1/2” |
1”x3/4” |
1-1/4”x1” |
1-1/2”x1” |
1-1/2”x1-1/4” |
2”x1-1/2” |
| mm |
25x15 |
25x20 |
32x25 |
40x25 |
40x32 |
50x40 |
| Dimensions |
A |
25.4 |
25.4 |
27.4 |
29 |
29 |
31 |
241N
| Size |
Inch |
2”x1” |
| mm |
50x25 |
| Dimensions |
A |
32.8 |
291
| Size |
Inch |
1/2” |
3/4” |
1” |
1-1/4” |
1-1/2” |
2” |
| mm |
15 |
20 |
25 |
32 |
40 |
50 |
| Dimensions |
A |
23.9 |
27.2 |
31.8 |
34.5 |
36.8 |
39.6 |
300
| Size |
Inch |
1/2” |
3/4” |
1” |
1-1/4” |
1-1/2” |
2” |
2-1/2” |
| mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
| Dimensions |
A |
22.1 |
24.6 |
39.5 |
32.5 |
33.8 |
36.8 |
43.2 |
342
| Size |
Inch |
1” |
1-1/4” |
1-1/2” |
2” |
| mm |
25 |
32 |
40 |
50 |
| Dimensions |
A |
52.3 |
57.4 |
61.2 |
69.9 |
In the light of the above information; we assure you always best service with quality and expect you will be interested in our pipe fittings and valves for your current & upcoming Projects.
|
